1.看代碼發那科三菱可用其它系統自測

2.帶參考說明

3.不提供技術解答幫助，新手/或者不會用的你也別碰。

4.僅供參考學習，上機請仔細驗證程序代碼，模擬驗證，提高刀具H高度空運行模擬確定安全后在加工

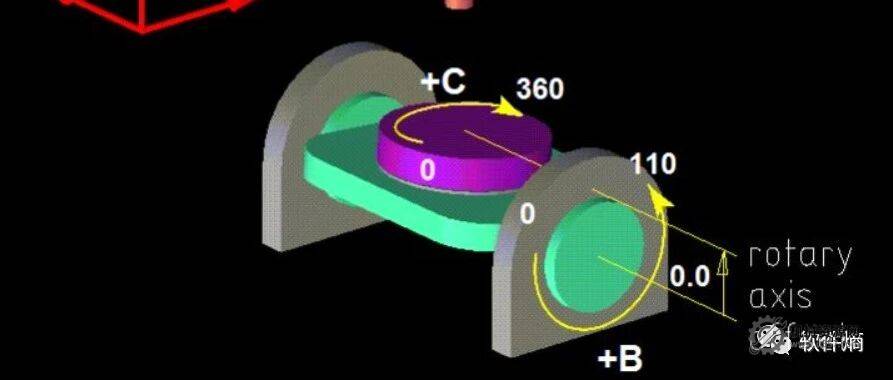

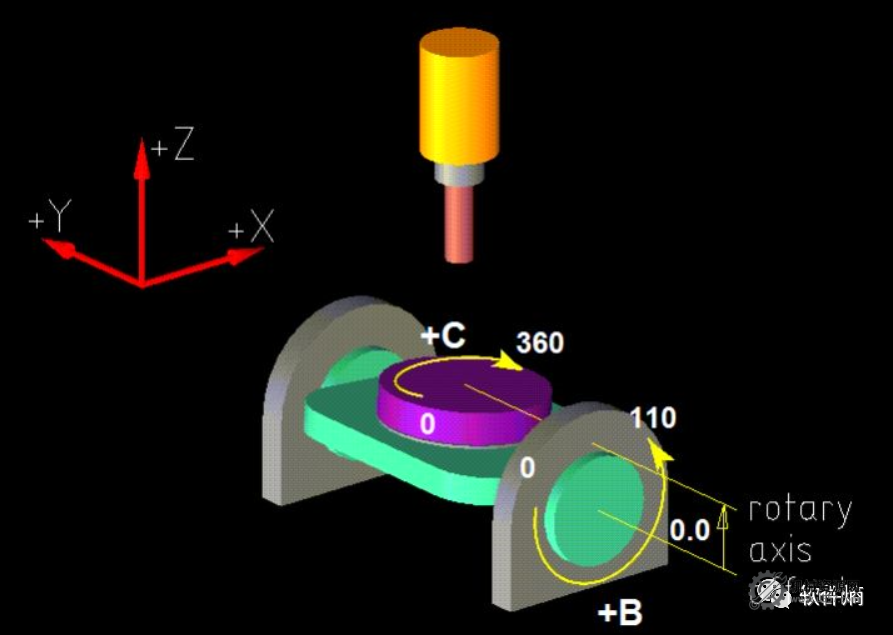

UG 五軸 3+2 BC坐標轉換后處理

配宏程序-支持發那科-三菱等系統

工件放在5軸任意位置

與3軸一樣簡單

支持3+2定向

鉆孔松軸鎖軸轉角度

智能去除多余角度

會玩的可試試

加工效果如下

程序示意

( Post Date = 2022-12-21?22:25:22 )

( Max Z = 110.000? MIN Z = -2.900 )

( Total_toolnumbers = 1 )

(===========================================)

( T5=粗12R0 D=12.00 R=0.00 FL=50 H=5 ZMIN=-2.900 )

(===========================================)

%

G15 G17 G21 G40 G80 G69 G90

G90 G10 L2 P0 X0. Y0. Z0.

M05

()

N05

(T5=粗12R0 D=12.00? R=0.00? H=5 )?

T05 M06

G91 G28 Z0.0

G65 P9012 B0.00 C0.00

G00 G90 G54 X.137 Y-11.156 B0.0 C0.0 S5500 M03

G43 Z50. H05

M08

Z.2

G01 X-.47 Y-11.164 Z.195 F2500.

X-1.288 Y-11.356 Z.188

X-1.907 Y-11.638 Z.183

X-2.588 Y-12.129 Z.176

X-3.147 Y-12.756 Z.17

X-3.557 Y-13.489 Z.163

……

X-2.443 Y-12.025 I1.597 J-3.503

X-2.489 Y-12.757 I.318 J-.387

G00 Z50.

G91 G28 Z0.0

G65 P9012 B90.00 C90.00

G00 X18.092 Y2.288 B90. C90. S5500 M03

Z50.

Z.2

G01 X17.708 Y2.758 Z.195 F2500.

X17.048 Y3.278 Z.188

X16.441 Y3.586 Z.183

X15.633 Y3.813 Z.176

X14.794 Y3.86 Z.17

X13.965 Y3.724 Z.163

X13.185 Y3.412 Z.156

X12.615 Y3.041 Z.151

…

G03 I-1.745 J-3.432

X15.805 Y3.765 I-1.745 J-3.432

X15.203 Y3.344 I-.105 J-.49

G00 Z50.

G91 G28 Z0.0

G65 P9012 B90.00 C0.00

G00 X18.441 Y-16.72 B90. C0.0 S5500 M03

Z74.975

Z25.175

G01 X18.686 Y-16.164 Z25.17 F2500.

X18.85 Y-15.34 Z25.163

Y-14.66 Z25.158

X18.686 Y-13.836 Z25.151

X18.347 Y-13.068 Z25.145

X17.851 Y-12.39 Z25.138

X17.22 Y-11.836 Z25.131

…

X18.85 Y14.66 Z22.078

Y15. Z22.075

G03 I-3.85 J0.0

X18.721 Y15.989 I-3.85 J0.0

X18.073 Y16.334 I-.485 J-.129

G00 Z74.975

?

M5

M9

G0 G91 G28 Z0

G0 G91 G28 Y0

G00 G90 B0 C0

M30

%
