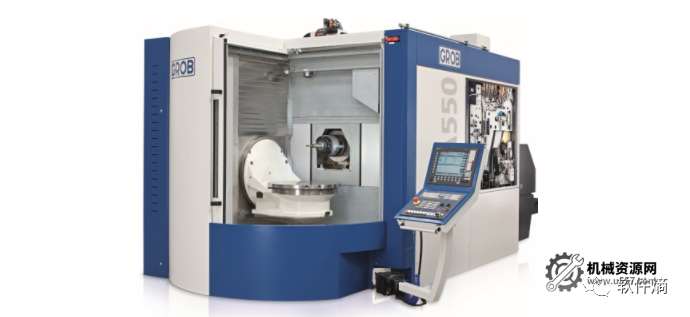

UG 格勞博GA550
海德漢530-BC軸后處理?
工廠在位上機后處理
使用版本10.0-1980
其它版本自己測試
3+2正常加工
五軸完美聯動
![圖片[1]-UG格勞博GA550-海德漢530-BC軸五軸后處理-機械資源網](http://www.58205.cn/wp-content/uploads/2025/09/20250927105059228-wxsync-2025-09-ca5cb93042733fb1776904de110c052f.png)
程序格式
2 FN 0: Q501=+0.0 ; X HOME POSITION
3 FN 0: Q502=310. ; Y HOME POSITION
4 FN 0: Q503=1020. ; Z HOME POSITION
7 * – OPERATION: CONTOUR_PROFILE – TOOL: T10 D10
12 L XQ501 YQ502 R0 FMAX M91
28 L X8.319 Y-29.394 Z39.188 A.02 B101.341 FMAX
29 L X-5.299 Y-29.389 Z41.92 FMAX
30 L X-7.107 Z42.282 F1500.
31 L X-7.746 Y-29.257 Z42.243
32 L X-8.196 Y-28.855 Z41.976
39 L X-8.823 Y-24.454 Z40.891
40 L X-8.822 Y-24.299 Z40.885 A.019 B101.356
41 L X-8.812 Y-23.836 Z40.864 A.018 B101.471
42 L X-8.799 Y-23.218 Z40.836 B101.627
43 L X-8.773 Y-21.984 Z40.785 B101.926
44 L X-8.761 Y-21.369 Z40.76 B102.072
45 L X-8.749 Y-20.754 Z40.737 B102.211
46 L X-8.727 Y-19.523 Z40.694 A.021 B102.473
60 L X-8.614 Y-7.753 Z40.479 A.314 B103.792
61 L Y-7.126 Z40.473 A.359 B103.791
375 L X8.319 Y27.346 Z-23.252 FMAX
380 L XQ501 YQ502 R0 FMAX M91
